J-Series
Breakout Panels

White J series cassette allowing a mix and match with 8 MPO-to-LC cable conversion cassettes that are interchangeable to dynamically manage your network from same frame.
The ultimate solution for high-density fiber management in data centers and other mission-critical environments.
Datasheet

J-Series
Breakout Panels

White J series cassette allowing a mix and match with 8 MPO-to-LC cable conversion cassettes that are interchangeable to dynamically manage your network from same frame.
The ultimate solution for high-density fiber management in data centers and other mission-critical environments.
Datasheet

Product Features

Product Features

MPO8-to-4LC

Modular cassettes

1 RU

J-Series Frame size that can
hold all casettes

Type A | B

Mapped QSFP breakout ports

40G, 100G, 400G

Supported bandwidths
for variety of applications

Single | Multi-mode

OS2 | OM4.  MT Elite MPO Ferrules.

MPO8-to-4LC

Modular cassettes

1 RU

J-Series Frame size that
can hold all casettes

Type A | B

Mapped QSFP breakout
ports

40G, 100G, 400G

Supported bandwidths for
variety of applications

Single | Multi-mode

 Can be manually added to
Fiber Mountain AllPath
Director Element Manager and Topology.

See the J-Series in Action

J-Series is Modular

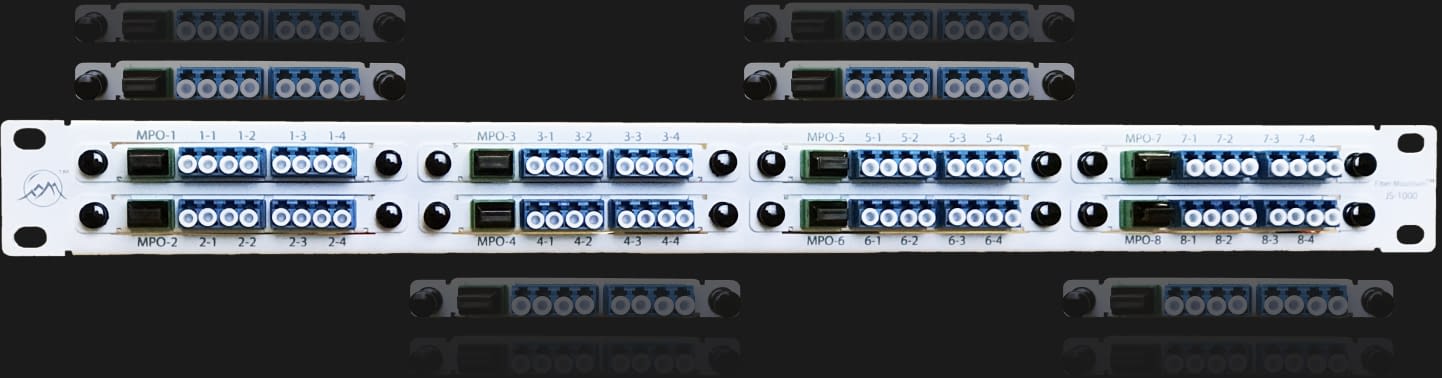

A close & clear look of the front side of a J series with all 8 cassettes on front so you don't have to go to the back of cabinet for inserting connections

J-Series cassettes are interchangeable. You can have all eight cassettes or any other number within the eight slots available.

J-Series cassettes are interchangeable. You can have all eight cassettes or any other number within the eight slots available.

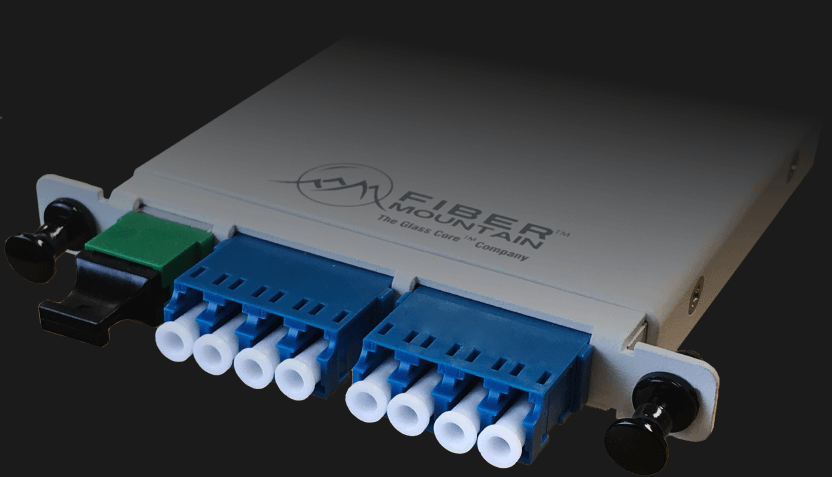

A side look of a single unit of a white J-Series cassette in a 3-D angle with 1 MPO port to the left and 4 Duplex LC ports to the right

Fiber Mountain’s J-Series cassettes are modular with multiple mapping and breakout options to be combined in the same frame.

Cassettes are easily installed or removed from the modular panel frame for low-maintenance setups. J-Series cassettes are available in MPO8-to-4LC configurations with multiple fiber mapping options.

See the J-Series in Action

J-Series is Modular

A close & clear look of the front side of a J series with all 8 cassettes on front so you don't have to go to the back of cabinet for inserting connections

J-Series cassettes are interchangeable. You can have all eight cassettes or any other number within the eight slots available.

A side look of a single unit of a white J-Series cassette in a 3-D angle with 1 MPO port to the left and 4 Duplex LC ports to the right

Fiber Mountain’s J-Series cassettes permit dynamic network layouts in a 1RU space. Cassettes are modular, allowing for multiple mapping and breakout options to be combined in the same frame.

Cassettes are easily installed or removed from the modular panel frame for low-maintenance setups. J-Series cassettes are available in MPO8-to-4LC configurations with multiple fiber mapping options.

AllPath Director’s Alarms view notifies all critical alerts with severity, time of occurrence, device location, port & even fiber

Manual Documentation with
AllPath® Director

When deployed with the Fiber Mountain AllPath® Director (APD) orchestration software, J-Series patch panels can be manually added to the Topology and Element Manager. Once added,  the network documentation will be updated automatically, providing a complete picture of the  physical layer.
